Make Any DIY Project PORTABLE

  • Universal 3.7V Lithium battery management system (BMS)

  • Dual Output: 5V and 3.3V

  • High Constant Current Output: 3Amp (total)


Details:

  • Single Lithium Battery Charger/Discharge (battery management system)

  • Compatible with Lithium Polymer (LiPo) and Lithium ION  (18650, 21700, ...)

  • Up to 3Amp Charge current (note your battery charge current)

  • Battery protection:

  1. Over current

  2. Over/Under-Voltage

  3. Short Circuit

  • Compatible with Raspberry PI, Arduino, and your DIY project requiring 5 & 3.3V

  • Recommended battery capacity

    • Greater than 2500mah

    • Discharge Current al least 6 Amps

  • No load detection to protect battery​

  • Single push button power on, long press (10sec) or disconnect load to power off

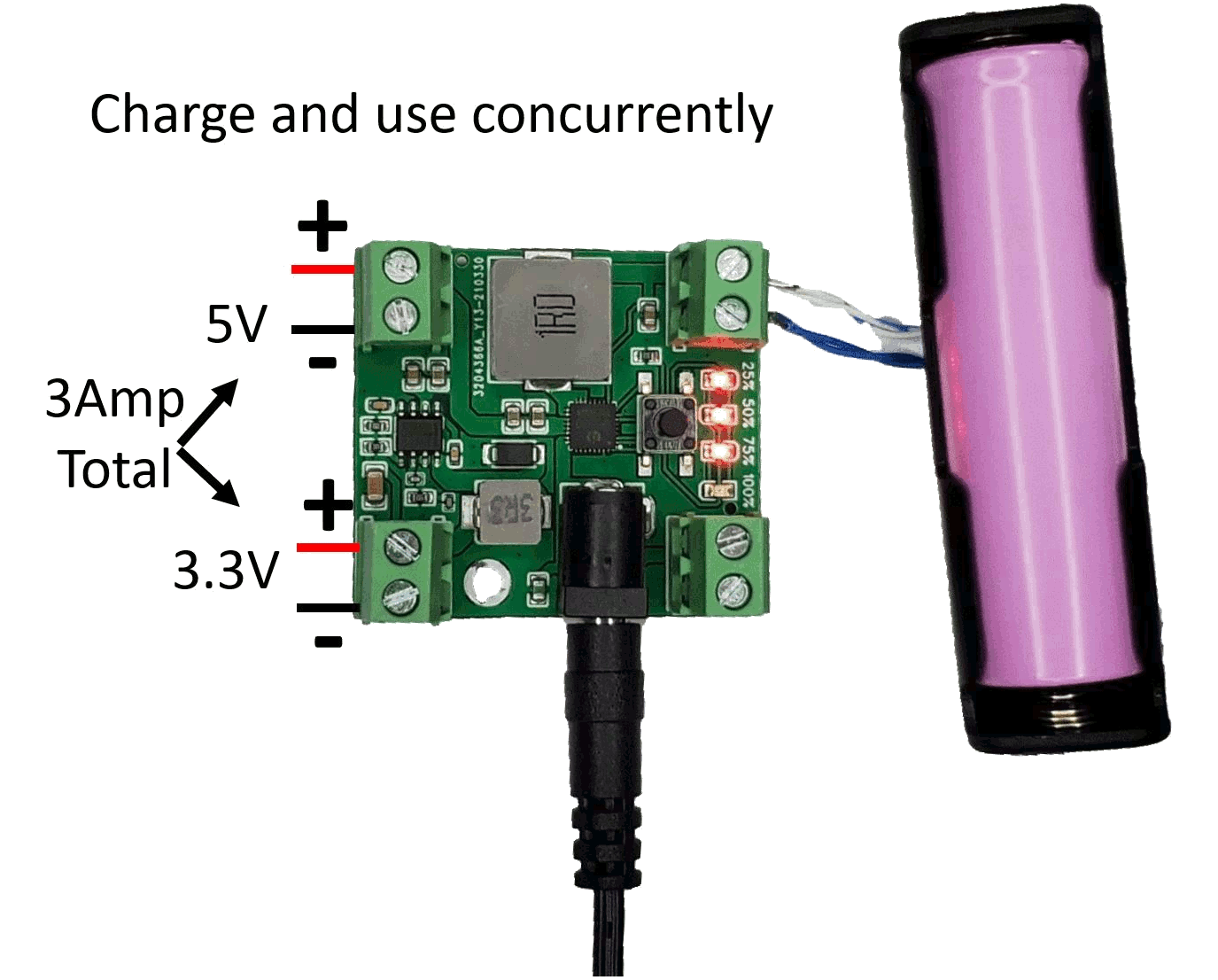

HOW IT WORKS
